Deep Tweak Audio/Virtual Spatial Studio

Virtual monitoring system

Virtual Spatial Studio

A personalized virtual loudspeaker and room environment for music production, mixing, and mastering.

Download (7-day trial)↓Learn more↓
Loading price…

This product is included in the Virtual Spatial Bundle.

VSS / Product 01Spatial audio monitoringVersion 1.0
VSS main interfaceCustom 9.1.6 environment

Key benefits

  • Monitor stereo, surround, and immersive sessions through virtual loudspeakers on headphones.
  • Personalize binaural monitoring with your own SOFA / HRTF data.
  • Freely build a virtual listening room featuring custom speaker placement and acoustic settings.
  • Simple and efficient head tracking using a camera.
  • Original room acoustic algorithm, fully considers the directional and reflection characteristics of different frequency bands, making the sound you hear more realistic.
  • Original headphone calibration algorithm is more efficient and accurate.

Main features

  • VST3 and AU (AAX coming soon).
  • 2.0, 5.1, 7.1, 7.1.4, 9.1.4, and 9.1.6 loudspeaker layouts.
  • Personalize HRTF (.sofa) file loading.
  • Customize the position of the virtual speakers.
  • Head tracking: yaw, pitch, roll, X / Y / Z.
  • Adjustable room dimensions and Room Mode simulation.
  • Separate control of early reflections and room reverb.
  • Surface materials for walls, floor, and ceiling.
  • Windows 10 or later (x64) and macOS on Apple silicon.
01Personalization

Custom HRTF / SOFA

Your ears are part of the system.

VSS comes with built-in, general-purpose HRTFs ready for immediate use; you can also load your personalized HRTF (.sofa) to create a binaural spatial image tailored to your individual hearing profile.

Don't have a personalized HRTF file? No problem.

We also offer a high-precision personalized HRTF generation service.Using a highly accurate 3D model of your upper body, including your ears and ear canals,we can generate an HRTF specifically tailored to you.

Explore PHRTF customization →
HRTF profilePersonalized / spatial field
Azimuth / 360°Depth / spatial
02Layouts

Virtual loudspeakers

From stereo to immersive.

Start with a supported monitoring layout, then position loudspeakers within the room geometry to match the listening scenario.

Supported layout matrix2.0 — 9.1.6

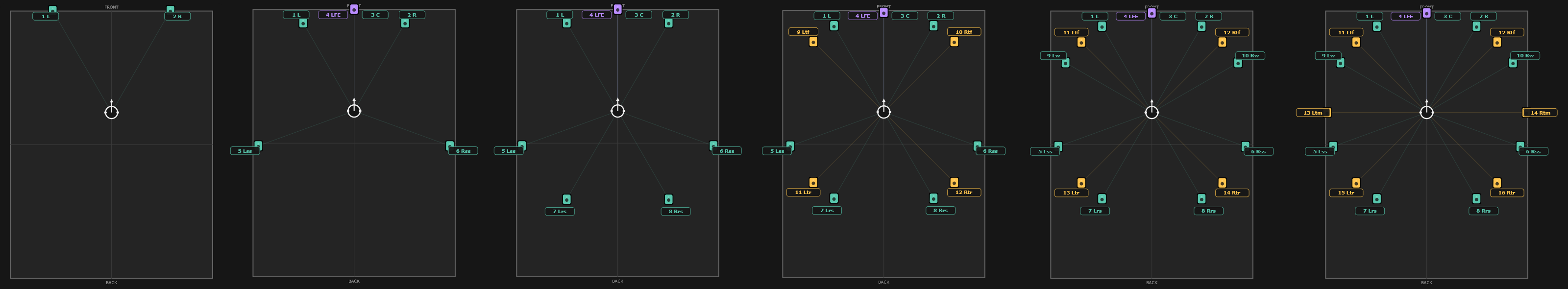

VSS supported speaker layouts from stereo 2.0 through immersive 9.1.6
012.0
025.1
037.1
047.1.4
059.1.4
069.1.6

Stereo, surround, and height-channel monitoring.

Choose from 2.0, 5.1, 7.1, 7.1.4, 9.1.4, and 9.1.6 virtual loudspeaker layouts. Supports common speaker layouts such as SMPTE, Film, Dolby Atmos, and MPEG-H.Monitor front, side, rear, and overhead channels through headphones without installing a physical multichannel speaker system. The layout view shows the arrangement of speakers around the listener.

Use a stereo pair for two-channel work, surround speakers for horizontal spatial placement, or a height-channel layout for immersive sessions. Customize the speaker arrangement and listening position within the virtual room.

Custom layoutRoom top view

Custom geometry

Place the monitoring field around the session.

Allows for the customization of various layout standards, such as SMPTE and Film. Additionally, speaker angles can be fine-tuned according to personal preference to meet specific monitoring requirements.Different room volumes and speaker distances will result in drastically different sound field experiences.

Layouts
2.0 / 5.1 / 7.1
Immersive
7.1.4 / 9.1.4 / 9.1.6
Positioning
Custom speaker layout
03Orientation

Head tracking

Move your head. Keep the room.

Using camera-based tracking, VSS updates the binaural output as the tracked head pose changes relative to the virtual speakers. Turn toward different parts of the monitoring field while the room remains anchored in space. Orientation and position controls cover yaw, pitch, roll, and X / Y / Z.

04Room acoustics

Room simulation

The boundaries become parameters.

Model the listening space through room size, modal behavior, reflection structure, wall materials, and acoustic parameters.

Room modesResponse / controls

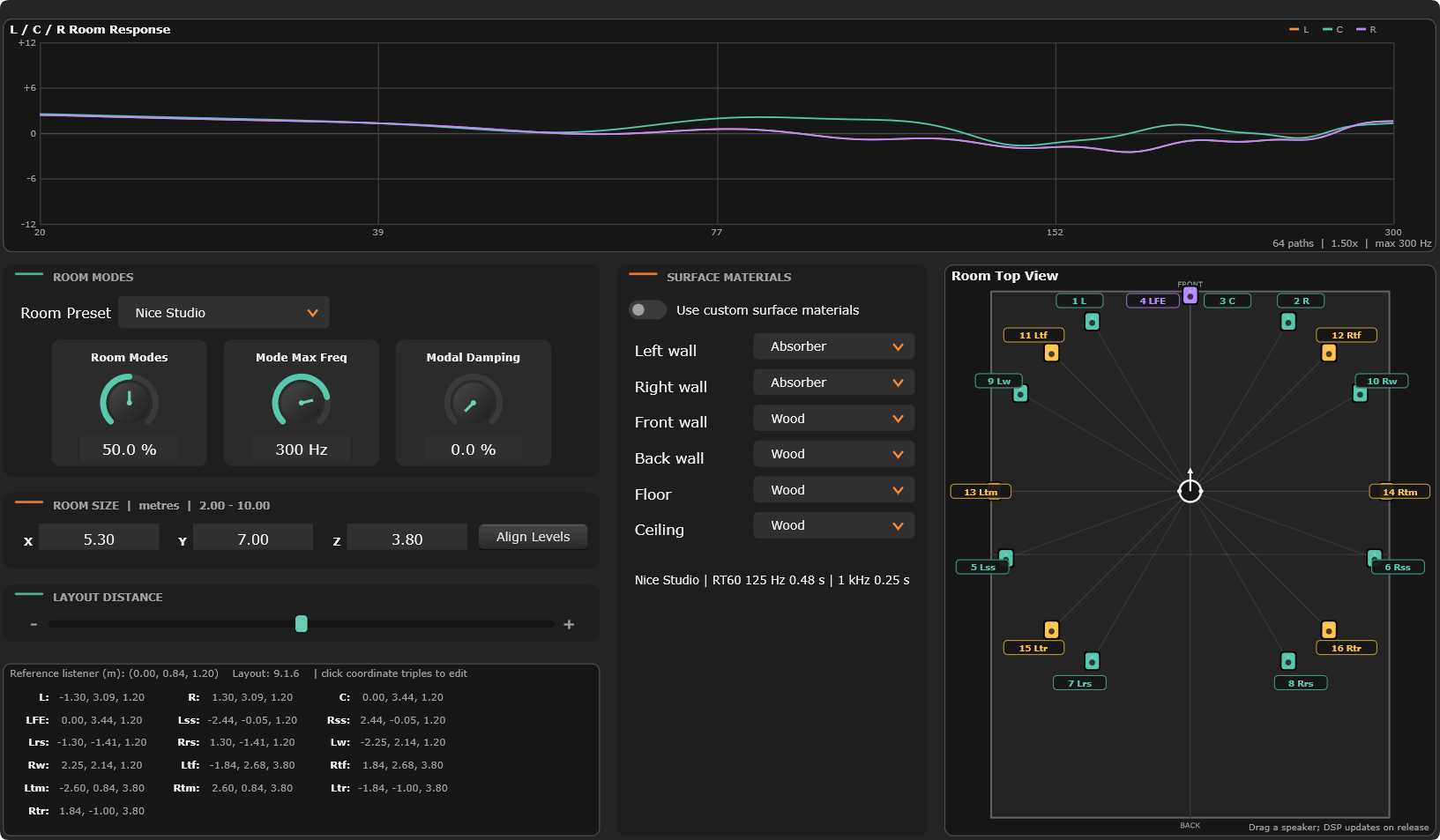

Room mode response, room parameters, and virtual room view in VSS
Surface materialsSix boundaries

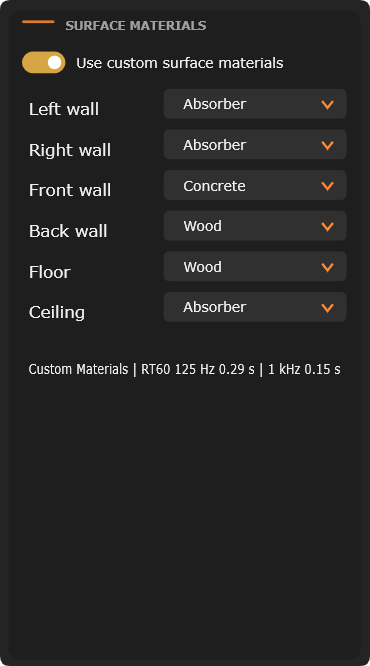

VSS surface material selections for room walls, floor, and ceiling
Room dimensionsRoom modesEarly reflectionsRoom reflectionsWall materialsAcoustic parameters

Our original room acoustic algorithm takes into account the directivity of the speaker at different frequency bands and the reflection characteristics of the wall, and also covers the low-frequency resonance characteristics of the room and the attenuation characteristics of high frequencies in the air, so that the sound you hear is more realistic and credible.

05Workflow

Professional application

One spatial reference. Across the work.

01

Mixing

Perform stereo, surround, and spatial audio mixing in VSS, and even customize near-field, mid-field, and far-field monitoring settings to meet the requirements of different mixing tasks.

02

Mastering

With your Personalize HRTF, speaker layout, and acoustic settings, you can achieve a more accurate listening experience and more precise sound localization through a configurable speaker and room reference system, allowing you to perform mastering work anywhere.

03

Producing

Produce content ranging from stereo to spatial audio anywhere, listening to instruments, arrangements, and sound design elements within a spatial soundstage—without the need for physical speakers.

04

Entertainment

Tired from work? VSS can also be used for entertainment—such as watching surround-sound movies or gaming. You can use it as an audio hub; simply put on your headphones, and it’s like being in a theater—one where you get to decide the scale.

Virtual Spatial Studio

Make space your reference.

Version1.0
Input layouts2.0 — 9.1.6
PlatformsWindows 10 and later · macOS (Apple silicon)
Plug-in formatsVST3 · AU · AAX (coming soon)
